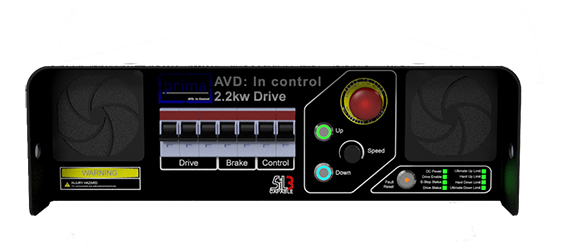

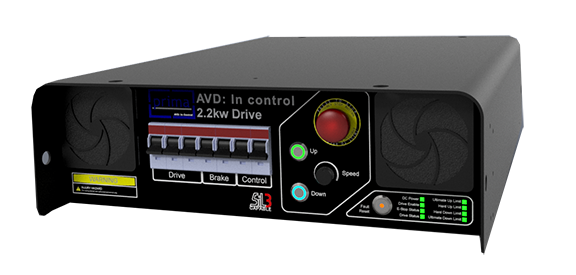

Prima Drive
Full Featured Drive designed for the most challenging automation. High speed, High load, Variable drive size. The Prima Drive has all the components needed to interface with Verendus Choreo and can be configured to run with nearly all automation interfaces on the market.

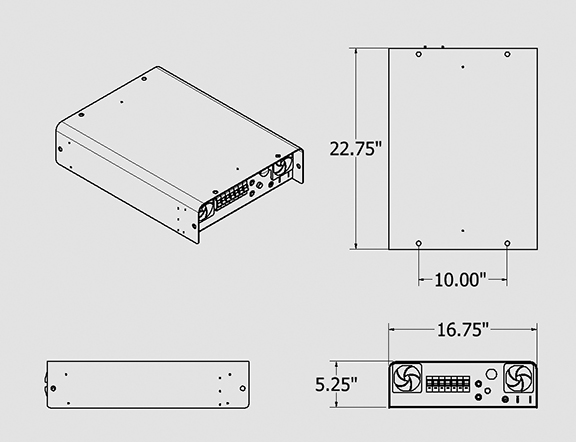

- • Drive Size
- • 3 Hp 3-U rack mount
- • 5 Hp 4U rack mount
- • 10 Hp 5-U rack mount
- • Other sizes and configurations available
- • Nidec M-702 Drive
- • Motion Control over EtherCAT
- • Sil3 safety system
- • Compatible with all Verendus Controllers
- • Local variable speed Jog controls
- • Rack or Truss mountable
- • UL 508A listed
- • Closed loop VFD
- • True zero speed and positioning capabilities
- • Inputs for Dual absolute encoders
- • Inputs for Load Cell Monitoring
- • On board circuit protection
- • On Board LED indicated status monitoring
DO WHAT YOU ARE GOOD AT.
We pride ourselves on our practical industry experience and agility in problem solving. With Verendus you have a partner you can count on who not only understands your vision but can carry it through from concept to completion.
Services:
- • Controls and Automation for the Entertainment and Industrial markets
- • Custom Mechanical & Control solutions
- • White label automation product line Development & Execution
- • System Testing and commissioning
- • UL 508a Panel shop
- • Design and Consultation
- • Quick turnaround/Short lead-time Design and Fabrication
