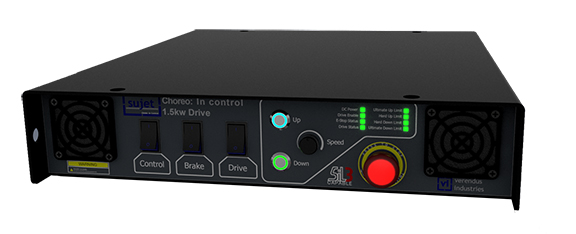

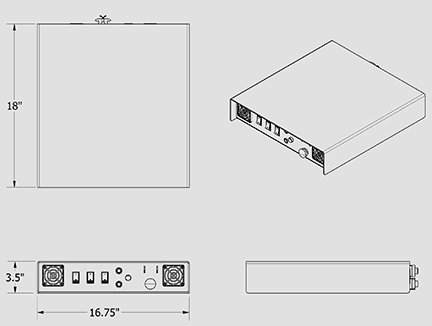

Sujet Drive
The Sujet Drive provides an affordable option for closed loop motion control that is compatible with all Verendus Industries machinery. It was designed from the ground up for easy installation, set up, and operation while maintaining the maximum amount of capability and safety. With the addition of a Verendus Industries Choreo Controller, the Sujet Series of drives can provide a capable yet cost effective solution for all your productions motions needs.
- • Drive Size
- • 2 Hp 2-U rack Mount
- • 3 Hp 3-U rack mount
- • 5 Hp 4-U rack mount
- • 10 Hp 5-U rack mount
- • Facility Drive wall mount- typically permanent installation
- • Other sizes and configurations available
- • Compatible with all Verendus Controllers
- • Local variable speed Jog controls
- • Rack, Truss, or Wall mountable
- • UL 508A listed
- • Open Loop VFD
- • Sil3 capable safety system
- • Variable speed and positioning capability
- • Optional inputs for dual absolute encoders
- • Optional input for load cell monitoring
- • On board circuit protection
- • On Board LED indicated status monitoring

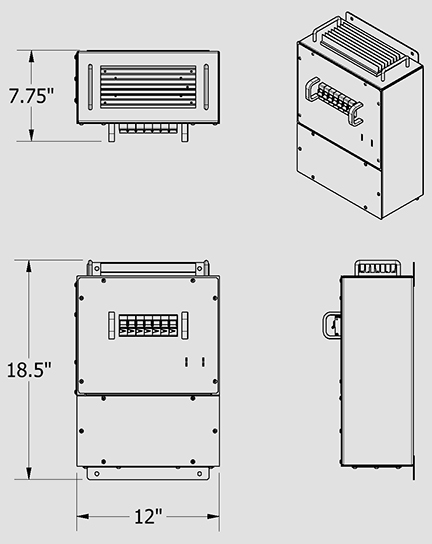

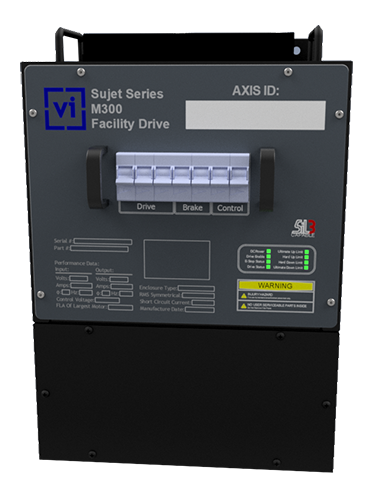

Facility Drive
The Facility drive incorporates all the control functionality of our Sujet Drive but in a package designed for permanent install applications and provides an affordable option for closed loop motion control that is compatible with all Verendus Industries machinery. It was designed from the ground up for easy installation, setup and operation while maintaining a maximum amount of capability and safety with features such as: Axis status monitoring, plug and play EtherCat connectivity, dual encoder monitoring, Sil3 safety system, easy wall mounting and many more.
With the addition of the Verendus Industries, Choreo control software, the facility drives can provide a capable yet cost effective solution for all your productions motion needs.
- • Designed for permanent install applications
- • Open Loop VFD
- • Variable speed with positioning or run to limits capability
- • Optional inputs for dual absolute encoders
- • Wall mountable enclosure
- • Sil3 capable safety system
- • Onboard status monitor
- • Compatible with Verendus Choreo control software
- • Onboard circuit protection
- • Configurable for connectors or conduit entries
- • UL 508A listed
DO WHAT YOU ARE GOOD AT.
We pride ourselves on our practical industry experience and agility in problem solving. With Verendus you have a partner you can count on who not only understands your vision but can carry it through from concept to completion.
Services:
- • Controls and Automation for the Entertainment and Industrial markets
- • Custom Mechanical & Control solutions
- • White label automation product line Development & Execution
- • System Testing and commissioning
- • UL 508a Panel shop
- • Design and Consultation
- • Quick turnaround/Short lead-time Design and Fabrication
